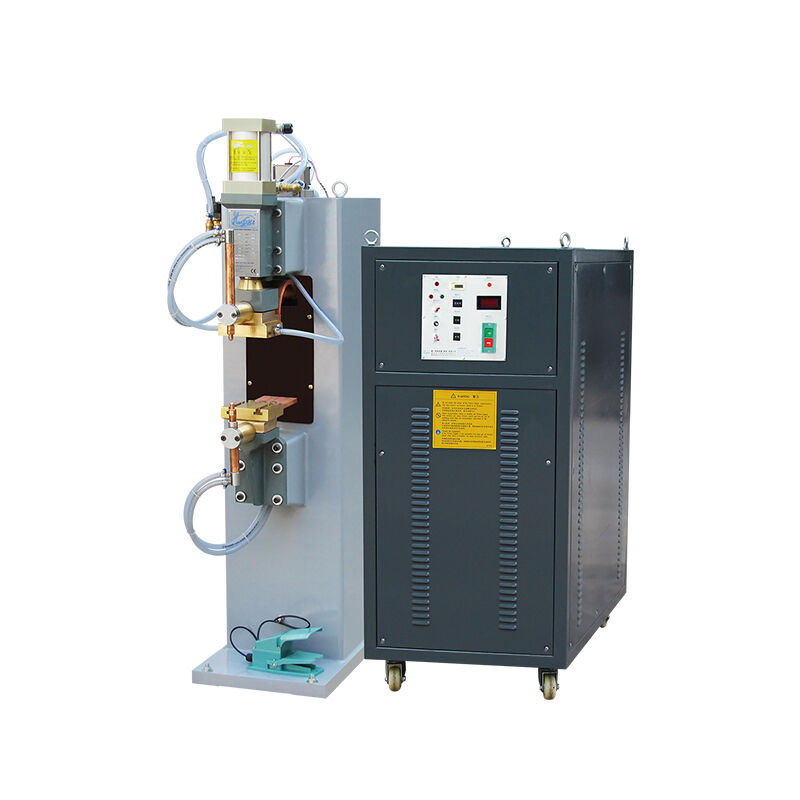

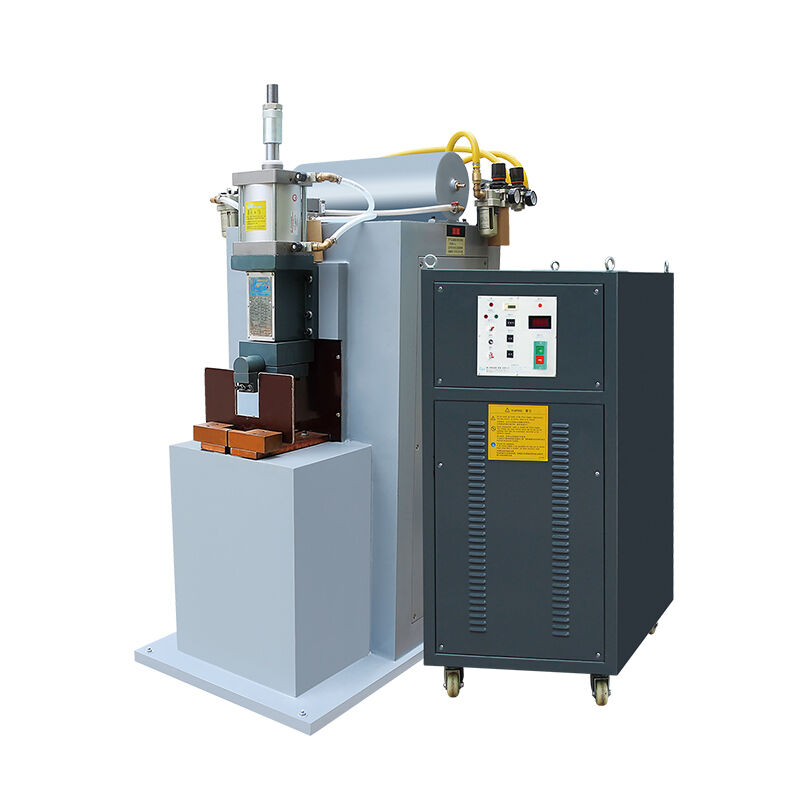

Name: 5000W Precision Spot Welder with 220V Input Power and CE/CCC/ISO Certification for Mini Spot Welding Applications
Brand: Guangdong Hwashi Technology inc.
SKU: WL-CJ-1K
Price: 157,805.00 USD
Availability: InStock

Huis > producten > De Machine van het vleklassen >

5000W Precision Spot Welder with 220V Input Power and CE/CCC/ISO Certification for Mini Spot Welding Applications

5000W spot welder with CE certification

220V precision spot welding machine

mini spot welder with ISO certification

Plaats van herkomst:

China

Merknaam:

HWASHI

Certificering:

CE/CCC/ISO

Modelnummer:

WL-CJ-1K

Contacteer ons

Verzoek om een Citaat

Productdetails

Productnaam:

HWASHI Precision Spot Welding Machine, Mini Spot Welding Machine met enkel hoofd of parallelle split

Sollicitatie:

Lassen van zilvercontact van laagspanningsapparaten, lassen van mini-precieze werkstukken zoals kris

Maat:

500*400*300mm

Voorwaarde:

Nieuw

Garantie:

12 maanden

Certificaat:

CE/CCC/ISO

Levensduur:

8-10 jaar

Ingangsvermogen:

220 V

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 Instellen

Prijs

Onderhandelbaar

Verpakking Details

Zeewaardig houten pakket

Levertijd

7-30 werkdagen nadat uw betaling is ontvangen

Betalingscondities

L/C, T/T, MoneyGram

Levering vermogen

50 sets per maand

Verwante producten

Video

5000W Precision Spot Welder with 220V Input Power and CE/CCC/ISO Certification for Mini Spot Welding Applications

Krijg Beste Prijs

Video

Pneumatic Spot Welding Machine Featuring Foot Pedal Operation and Lever Pedal Spring Pressurized Structure for Stainless Steel Wire Mesh Welding

Krijg Beste Prijs

Pneumatische Automatische Puntlasmachine met Intelligente Touchscreen Controller voor Roestvrij Staal Weerstandslassen

Krijg Beste Prijs

Pneumatische automatische pleklassen voor roestvrij staal met voetpedaal

Krijg Beste Prijs

Contacteer ons

+8613380655800

marketing@hwashi.com

Contact nu

Productomschrijving

5000w Mini Spot Welder Welding Machine With Single Head Or Parallel Gap

HWASHI Precision Spot Welder, Mini Spot Welding Machine with Single Head or Parallel Gap

Precision Micro Spot Welder Description

This Precision Spot Welder not only features the general capabilities of capacitor discharge spot welding machines, but also includes the following performance characteristics:

Rigid welded steel frame construction
Air operated system
Low-inertia guided ram with spring force adjustment
Dual rams on parallel gap model
Precision Bimba air cylinders
Ram guiding by cross roller instrument slides
Electrodes and horns secured by cam lock fastener
Dual anti-tie down palm button initiation or electric footswitch according to application

Precision Micro Spot Welder Features

Effectively restrains the occurrence of welding spatter
High working accuracy
High degree of steel structure
Low pressure of welding
Stepless adjustment of electrode pressure range
Stepless adjustment of electrode pressure stroke
Flexible collocation of welding head - indirect single-point, indirect double-point and direct single-point or direct double-point all available

Application Areas and Samples

Ideal for welding silver contacts of low voltage appliances and miniature precise work pieces like crystal valves of chips, etc.

Technical Parameters

Model	Welding Spot Manner	Input Voltage	Input Power	Capacitance	Output Heat	Welding Capability	Dimensions
WL-CJ-0.5K	Direct single-point	220/1	0.5 KW	2000 μF	180 J	0.4×2 mm×Pieces	500400300 mm
WL-CJD-0.5K	Indirect double-point	220/1	0.5 KW	2000 μF	180 J	0.4×2 mm×Pieces	500400300 mm
WL-CJ-1K	Direct single-point	220/1	1 KW	3000 μF	380 J	0.5×2 mm×Pieces	500400300 mm
WL-CJD-1K	Indirect double-point	220/1	1 KW	2000 μF	180 J	0.5×2 mm×Pieces	600450300 mm
WL-CJ-2K	Direct single-point	220/1	1 KW	4500 μF	500 J	1.0×2 mm×Pieces	380650450 mm
