Name: Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS -100K
Price: 225,000.00 USD
Availability: InStock

Huis > producten > De Machine van het naadlassen >

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

automatic sink rolling machine

welding production line equipment

water tank seam welder

Plaats van herkomst:

China

Merknaam:

Hwashi

Certificering:

CE,CCC,ISO

Modelnummer:

WL-FS -100K

Contacteer ons

Verzoek om een Citaat

Productdetails

Productnaam:

Roestvrij staal keuken wasbak naad lasmachine

Breedte van de slijpband:

Halfautomatisch gootsteenlassen

Maat:

780x1250x1800mm

Besturingssysteem:

PLC

lasbreedte:

5-20 mm

Minimale lasdikte:

0,2 mm

Spanning:

380V,2 fase,50/60Hz

Machinetype:

Weerstandslassen

Leven in dienst:

8-10 jaar

Gewicht (kg):

400 kg

Betaling & het Verschepen Termijnen

Min. bestelaantal

Prijs

Onderhandelbaar

Verpakking Details

Zeewaardig houten pakket

Levertijd

7-30 werkdagen nadat uw betaling is ontvangen

Betalingscondities

T/t, l/c

Levering vermogen

50 sets per maand

Verwante producten

Video

Stainless Steel Sink Grinding Machine CNC Automatic Sink Edge Polishing Machine

Krijg Beste Prijs

Video

Robuuste, op maat gemaakte las-/rolmachine voor olievat, blik, verwarming, radiator, vliegtuigbrandstof

Krijg Beste Prijs

Video

Hwashi High Quality Longitudinal Rolling Seam Welding Machine voor brandstoftank Automatic Seam Welding Machine

Krijg Beste Prijs

Video

Automatische CNC roestvrij staal keuken wasbak schaal maker naad lasmachine met pomp motor type

Krijg Beste Prijs

Contacteer ons

+8613380655800

marketing@hwashi.com

Contact nu

Productomschrijving

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)

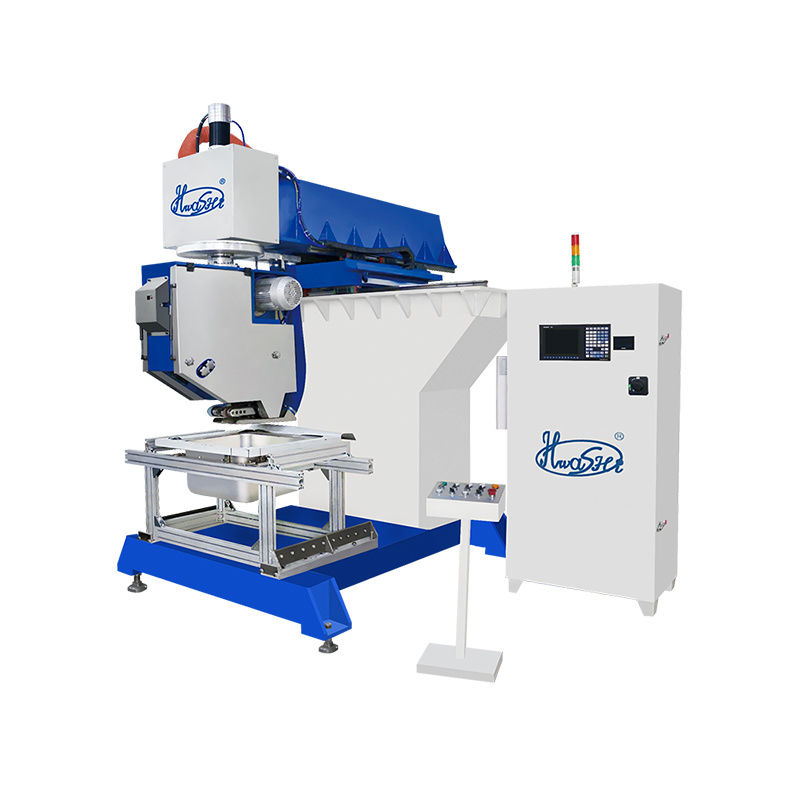

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

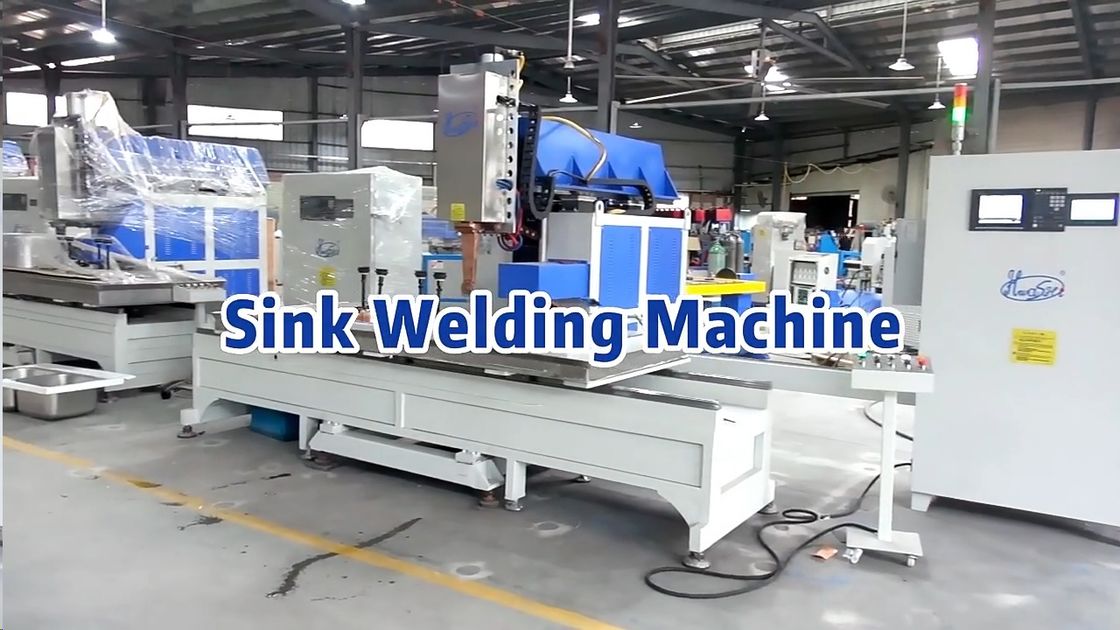

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
